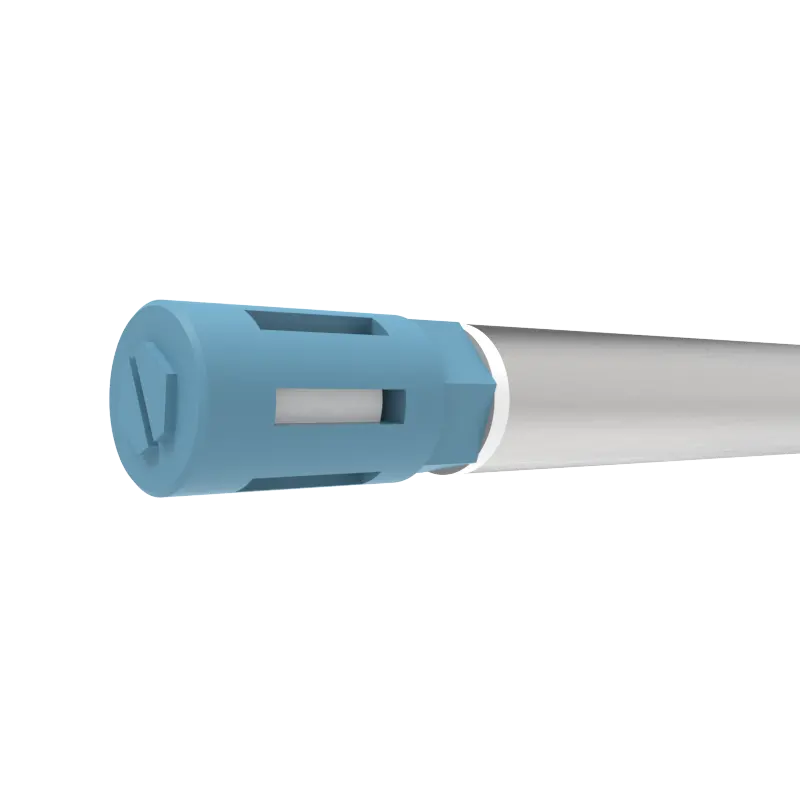

Prob Sıcaklık ve Bağıl Nem Sensörü

Teknik Özellikler

Relative Humidity Measurement
Measuring Range	0…100 %rH
Accuracy	± 1.5 %rH @ 10-90% typ.
Hysteresis	± 1 %rH max.
Resolution	0.1 %rH
Temperature Measurement
Measuring Range	-20 …+60 ⁰C
Accuracy	± 0.2 ⁰C @ -20…+60 ⁰C typ.
Resolution	0.1 ⁰C
Mechanical
Probe	Stainless Steel 316
Probe Connection	with Cable (max. 10 m)/ with Connector (optional)
Cable Gland	PG7 suitable for cable dia 3 to 6.5 mm
Filter Type	PC body, PTFE membrane
Protection Class	IP40
Dimensions	Φ: 16mm L: 30 / 150 / 200 / 250 / 300 / Custom (mm)
Installation Type	Duct
Outputs
Type	Digital , non-isolated 2w RS485
Protocol	Modbus RTU
Baud Rate	9600 ... 156000 bps
Max Nodes on BUS	32
Isolation	RS485 Output is NOT isolated from Supply Voltage & Sensor
Electrical
Supply Voltage	18 ... 35 VDC
Current Consumption	10 mA max @ 24 VDC
Electrical Protection	Reverse polarity
Environmental
Measured Media	Air
Working Conditions	0 ... 95 %rH non Condense & -10…+60 ⁰C

sTRH.03.[probe lenght].[cable lenght]
[probe length]	[01] - 30 mm	[02] - 150 mm	[03] - 200 mm
[probe length]	[04] - 250 mm	[05] - 300 mm	[06] - Custom specified
[cable length]	[01] - 1 m	[02] - 2 m	[03] - 3 m
[cable length]	[04] - 5 m	[05] - 10 m	[06] - Custom specified
